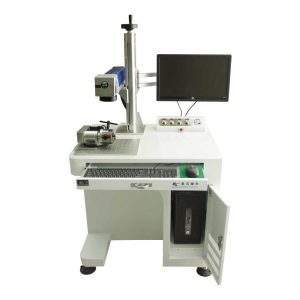

Laser Marking Machine FL-01
It can provide stable power output, perfect optical mode, good beam quality, and high-speed marking, so users can get a perfect effect and high efficiency, which can fulfill massive production.
Main Feature
- Laser power output is stable & light spot quality is good. Ultrahigh accuracy and fineness, with resolution up to 2540dpi.
- Quick marking and cutting speed at 2-3 times that of traditional machines.
- There is no restriction in the operation system. It is convenient in operation, with fully closed light paths, so it is stable, reliable, and free in maintenance with an ultra-long service life of up to more than 100,000 hours.
- No pollution, no noise, and no consumable materials. High electro-optical conversion efficiency. The gross power consumption is 500W, which is a tenth of a lamp-pumped solid laser marking machine, so can greatly save energy.
- Moreover, No need for any maintenance, long life, small volume, suit for working in atrocious working conditions.
- Powerful marking software, and compatible with files generated from CorelDraw, AutoCAD, Photoshop, etc; support PLT, PCX, DXF, BMP format; SHX, TTF font can be used directly; it also supports automatically coding, printing serial number, batch number, date, bar code, 2D bar code, number jumping automatically, etc.
Download low res image
Download all images As a zip
Download printing instruction As a pdf
Customize Quotation Sheet
- Description
- Tech Specs
- Packaging Details
Description
Laser Marking Machines
The most sophisticated fiber laser source and top-notch Galva scanning system is the Laser Marking Machine FL-01.
Users may obtain a perfect effect and high efficiency, which can support large-scale manufacturing, thanks to its consistent power output, ideal optical mode, good beam quality, and high-speed marking.
The benefits of the Laser Marking Machine FL-01 include the following: good looks, simple operation, no need for materials, no maintenance required, and no defects in long-term operation. It can thus satisfy the demand for continual industrial operations.
Main Feature
Both the laser’s output and the quality of its light spots are stable.
Exceptionally fine and accurate, with a resolution of up to 2540 dpi.
Cutting and marking speeds are 2-3 times as fast as those of conventional machines.
The operating system has no limitations.
With totally closed light paths, it is simple to use and has a long service life of up to more than 100,000 hours. It is also steady, reliable, and cost-free to maintain.
There is no noise, no pollution, and no consumables.
high conversion efficiency for electro-optics. The total power usage is 500W, which is significantly less than that of a solid laser marking machine pumped by lamps.
Additionally, the long life, low volume, and lack of maintenance make it suitable for use in appalling working circumstances.
It supports the PLT, PCX, DXF, BMP formats and can directly utilize the SHX and TTF fonts. It also allows automatically coding, printing serial numbers, batch numbers, dates, bar codes, 2D bar codes, and number jumping, among other features.
Application Area
Applicable Industries
It is extensively used in the manufacturing of stainless steel products as well as translucent plastic keys for mobile phones, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tool parts, knives, watches, glasses, jewelry, and other fashion-related items.
Applicable Materials
All types of metal, including rare metal, engineering plastic, electroplating, coated, spraying, plastic and rubber, epoxy resin, ceramics, and other materials.
To purchase this wonderful product please click here !
- Wave Length : 1064mm
- Output Power: 30w
- Marking area : 110mm * 110mm
- Marking Depth: < 0.3mm (depending on material)
- Linear speed : >7000mm/s
- Min. line width : 0.001mm
- Min. character size: 0.15mm
- Cooling: Air cooling
- Location: Red location
- Power supply: AC110V/AC220V / 10%50Hz
Additional information
| Weight | 120.2 kg |
|---|---|
| Dimensions | 78.7 × 66 × 139.7 cm |
