Laser Engraving and Cutting Machines
High-speed mute: silent slider to reduce the resistance of the laser head and the plotter during the movement, making the laser machine work more smoothly. it can adapt to the heavy-duty laser machine’s precise operation and ensure that it runs efficiently and stably for a long time.
Easy to adjust: The adjustable aluminum alloy mirror bracket can adjust the laser angle arbitrarily, the structure is simple and convenient to operate the laser device is stable, and the maintenance cost is low, the outer surface is oxidized beautifully, with high-temperature resistance and wear resistance.
Stable and durable: The X/Y axis uses a high-precision belt-driven motor to improve response speed and cutting accuracy, The dual coaxial power transmission is more stable, reducing the inertia error, and improving the engraving precision and the life of the laser machine.
Download low res image
Download all images As a zip
Download printing instruction As a pdf
Customize Quotation Sheet
- Description
- Specification
- Application
- Packaging Details
- Reviews (0)
Description
CO2 Laser Engraving and Cutting Machines 645-1390
High-speed mute: silent slider to reduce the resistance of the laser head and the plotter during the movement, making the laser machine work more smoothly. it can adapt to the heavy-duty laser machine’s precise operation and ensure that it runs efficiently and stably for a long time.
Easy to adjust: The adjustable aluminum alloy mirror bracket can adjust the laser angle arbitrarily, the structure is simple and convenient to operate the laser device is stable, and the maintenance cost is low, the outer surface is oxidized beautifully, with high-temperature resistance and wear resistance.
Stable and durable: The X/Y axis uses a high-precision belt-driven motor to improve response speed and cutting accuracy, The dual coaxial power transmission is more stable, reducing the inertia error, and improving the engraving precision and the life of the laser machine.
Engraving and Cutting Samples
|
MODE
|

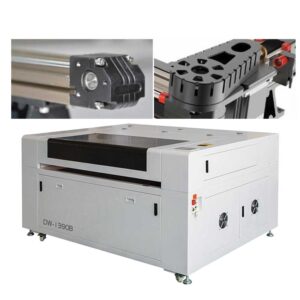

DW-1390B co2 laser cutting machine
|
|
Working Area
|
1300*900mm
|
|
Laser Power
|
100w(Option 130w/150w)
|
|
Laser Type
|
co2 sealed laser tube
|
|
Cutting speed
|
0-24000mm/min
|
|
Engraving speed
|
0-60000mm/min
|
|
Resetting positioning accuracy
|
±00.05mm
|
|
Power supply
|
110V-220V/50~60HZ
|
|
Operating temperature
|
0-45℃
|
|
Min. shaping character
|
English 1.0×1.0mm
|
|
Graphic format supported
|
PLT AL DXF BMP DST
|
|
Driving motor
|
three phases stepper motor
|
|
Cooling mode
|
water-cooling and protection system
|
|
Driving system
|
Stepper motor (Option servo motor)
|
|
Operating humidity
|
5-95%
|
|
Control system
|
DSP control RUIDA syetem
|
|
Working table
|
Double Knife table and Honeycomb tabe
|
|
Electrical Up-down system
|
Yes Free
|
|
Air pump and Exhaust fan
|
Yes Free ACO-008 air pump and 550W exhaust fan
|
|
Industry chiller
|
S&A CW-5200 Free
|
|
Rotary
|
Optional
|
Additional information
| Weight | 380 kg |
|---|---|
| Dimensions | 194 × 140 × 98 cm |
