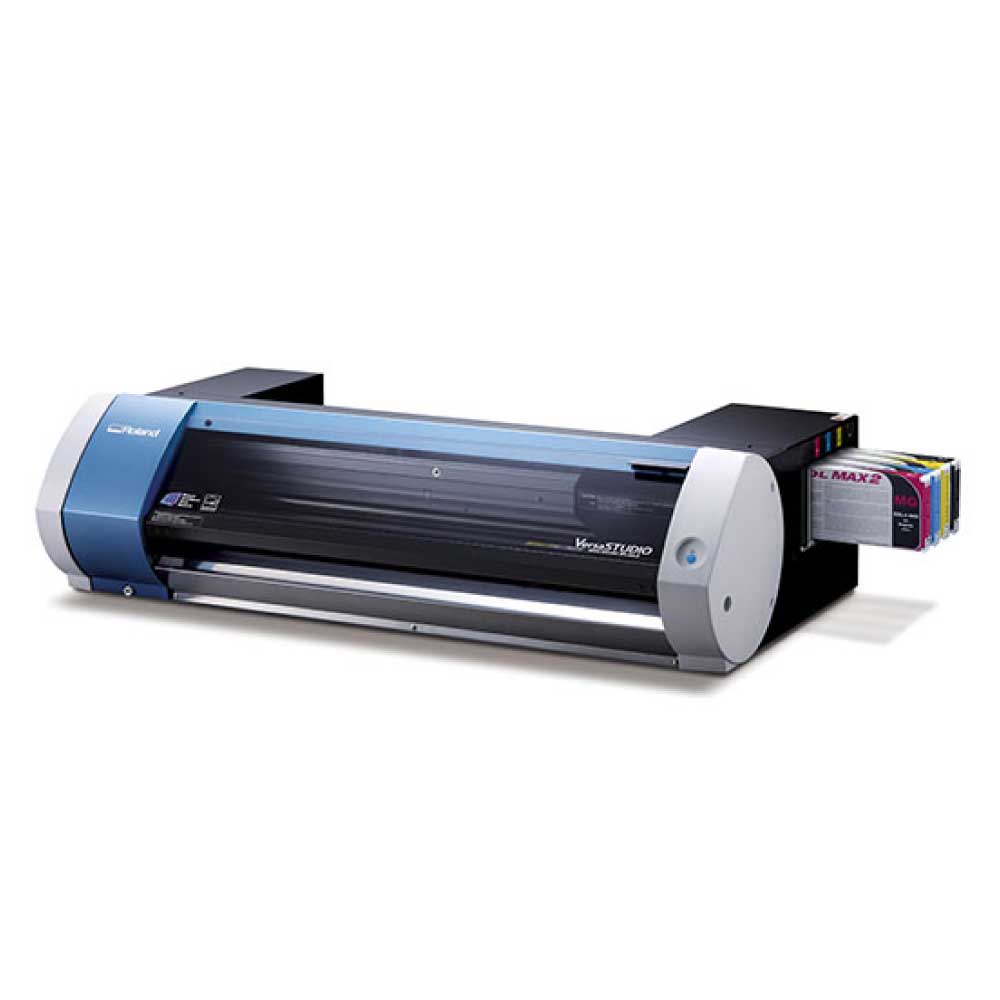

Roland VersaSTUDIO BN-20

Start building a t-shirt, poster, sticker, and decal graphics printing business, all from the comfort of your desktop. With the VersaSTUDIO BN-20 t-shirt graphic printing & cutting machine, you can print, cut, and create super high-quality graphics without the super high price tag.

  • Easily the most versatile print devices in their class— print and cut on a huge range of vinyl, films, and media
  • In addition to traditional graphics, you can create heat transfer graphics for jerseys, hoodies, bags, and more
  • Legendary Roland DG machine reliability combines with exceptional image quality and color to give you the solution you need to succeed
SKU: 658 Categories: ,
 Download high res image
 Download low res image
  Download all images As a zip
  Download printing instruction As a pdf
To access this section, first register and then log in
Print Proof

  Customize Quotation Sheet
To access this section, first register and then log in
To access this section, first Register and then log in
View cart
Join Waitlist We will inform you when the product arrives in stock. Please leave your valid email address below.

Description

Desktop Inkjet Printer & Cutters

Start building a t-shirt, poster, sticker, and decal graphics printing business, all from the comfort of your desktop. With the VersaSTUDIO BN-20 t-shirt graphic printing & cutting machine, you can print, cut, and create super high-quality graphics without the super high price tag.

  • Easily the most versatile print devices in their class— print and cut on a huge range of vinyl, films, and media
  • In addition to traditional graphics, you can create heat transfer graphics for jerseys, hoodies, bags, and more
  • Legendary Roland DG machine reliability combines with exceptional image quality and color to give you the solution you need to succeed

Create Print and Cut Graphics with One Awesome Machine

Not only do BN-20 devices print quality graphics up to 1440 dpi, but they can automatically contour-cut them as well! This means you can create labels, decals, t-shirt transfers, and other products that are cut to the unique compositions of your designs.

A state-of-the-art cutting operation provides consistent results and isn’t prone to the problems inherent in craft cutter devices with simple up/down electronic controls. Instead, they ensure super-crisp cutting results on a huge diversity of products— supporting rolls up to 20 inches wide by 50 ft. and weighing up to 13 lbs.

Application

Graphics, Apparel, Labels, Decals, Signs, Displays, Posters, Vehicle graphics, Art, and Wall decor.

print-on-apparel Labels-and-decals Posters Vehicle-graphicsWindow-graphics Wall-Decor

Model VersaStudio BN-20 Series
Printing method / Cutting method Piezoelectric inkjet / Grit roller feed
Acceptable media Width 5.9 to 20.3 in. (150 to 515 mm)
Thickness Printing: Maximum 39 mil (1.0 mm) with liner
Cutting: Maximum 16 mil (.4 mm) with liner
Roll Weight Maximum 13.2 lbs (6 kg)
Roll Outer Diamater Maximum 5.9 in (150 mm)
Core Diamater 2 in (50.8 mm)or 3 in (76.2 mm) cores
Printing/cutting width1 Maximum 18.9 in (480 mm)
Ink Cartridges Type & Capacity (BN-20) Roland ECO-SOL MAX, 220ml
Type & Capacity (BN-20a) Roland ECO-SOL MAX 2, 220ml
Colors (BN-20) 5 Color – CMYK + White (Cyan, Magenta, Yellow, Black, and White)
5 Color – CMYK + Metallic (Cyan, Magenta, Yellow, Black and Metallic)
Colors (BN-20 & BN-20a) 4 Color – CMYK (Cyan, Magenta, Yellow, Black)
Printing resolution Max 1440 dpi
Cutting Blade Type Roland CAMM-1 series cutter blade
Cutting speed 0.4 (10 mm/s) to 5.9 in/s (150 mm/s)
Blade force 30 to 300gf
Software resolution (when cutting) 0.000984 in/step (0.025 mm/step)
Distance accuracy (when printing)2,3 Error of less than ± 0.3 % of distance traveled, or ± 0.3mm (0.012 in), whichever is greater.
Distance accuracy (when cutting)2,4 Error of less than ± 0.4 % of distance traveled, or ± 0.3mm (0.012 in), whichever is greater.
Repetition accuracy (When cutting)2,5 ±0.004 in (± 0.1mm) or less
Alignment accuracy for printing and cutting2,6 ±0.020 in (± 0.5mm) or less
Alignment accuracy for printing and cutting when reloading media2,7 Error of less than ± 0.5% of distance traveled, or ± 0.012 in (3mm), whichever is greater
Print Heater Temperature8 Fixed at 95o F (35oC)
Connectivity USB 2.0
Power-saving function Automatic sleep feature / AC 100 to 240V ± 10%, 1.0 A, 50/60 Hz
Power Consumption During Operation Approx. 90 W
Sleep Mode Approx. 5.5 W
Acoustic Noise Level During Operation 62 dB (A) or less
During Standby 42 dB (A) or less
Dimensions/Weight 39.7″ W x 22.9″ D x 11.5″ H in.
(1009 W x 582 D x 293 H mm), 79.4 lb. (36 kg)
Operating Conditions Power on Temperature: 68o – 90o F (20 to 32o C), humidity: 35 – 80% RH (non condensing)
Power off Temperature: 41o – 104o F (5 to 40o C), humidity: 20 – 80% RH (non condensing)
Included Items Power cord, USB cable, blade, blade holder, downloadable software and manual library— including VersaWorks RIP and User’s Manual

print-on-apparel Labels-and-decals Posters Vehicle-graphicsWindow-graphics Wall-Decor

Additional information

Weight 36 kg
Dimensions 100 × 58 × 29 cm
