Hotronix® Cap Heat Press

0 out of 5
  • Actual Weight: 13.6 kg
  • Shipping Weight: 18.5 kg
  • Dimensions: 53.3 x 25.4 x 45.7 cm
  • Shipping Dimensions: 66.4 x 38.1 x 53.3 cm

Hotronix Premier Warranty

  • Lifetime Warranty on Heating Element
  • 5 yr on Framework
  • 2 yr on Circuit board
  • 1 yr parts/labor
Availability: 1 in stock SKU: STH-STXC Category:
 Download high res image
 Download low res image
  Download all images As a zip
  Download printing instruction As a pdf
To access this section, first register and then log in
Print Proof

  Customize Quotation Sheet
To access this section, first register and then log in
To access this section, first Register and then log in
View cart

Description

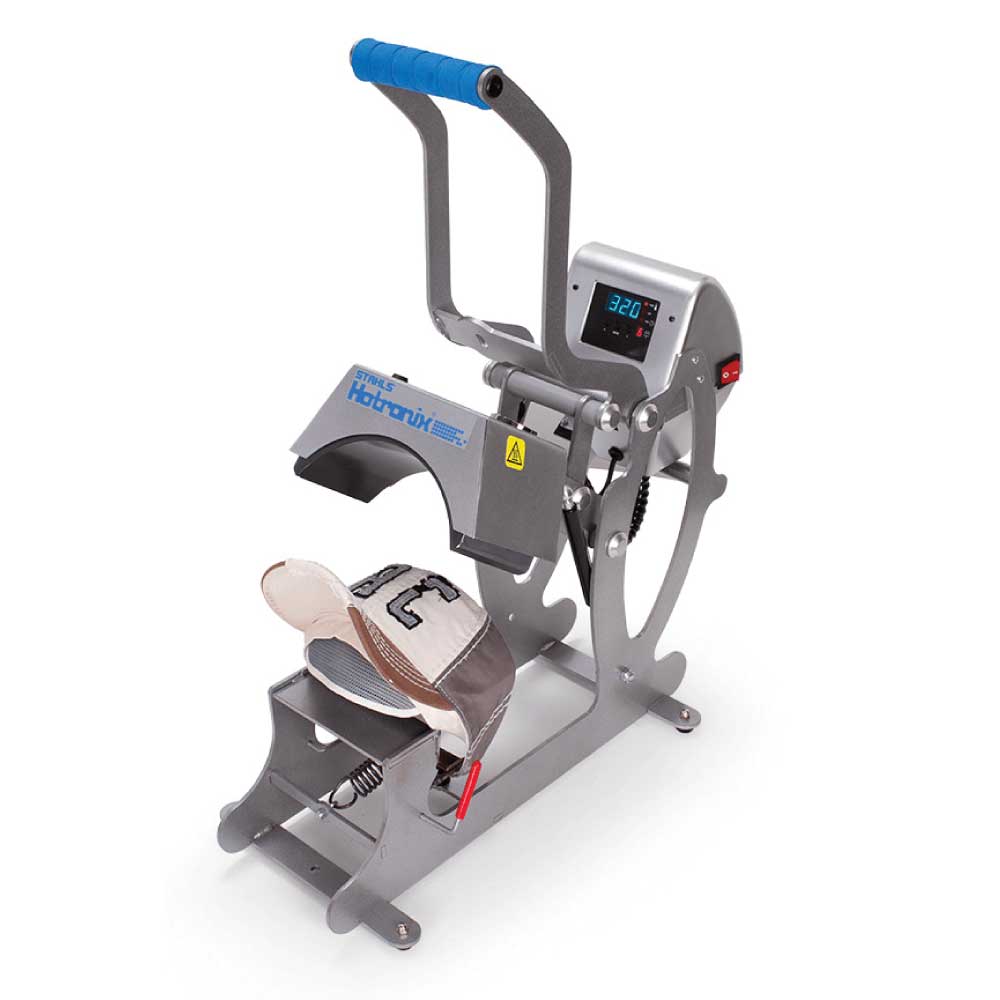

Hotronix Cap Heat Press

This automatically opening cap heat press from Hotronix allows your customers complete uniform customisation. As a result, it’s ideal for baseball and softball caps, fan gear, spirit clothing, mementos, and more.

With this simple-to-use cap heat-press, which can also be used to embellish caps of different sizes, you may increase add-on sales and decorate the entire uniform.

The innovative magnetic auto-open mechanism guards against excessive use.
The hold-down tool makes the surface smooth and secures the cap.
Moreover, Decorate hats of many sizes, shapes, and styles using the optional platens that are offered.

to order this kind of product please click here !

Ideal solution for heat applying logos on caps

made to adorn hats of different sizes
You can multitask without applying yourself too much thanks to the auto-open feature.
digital readouts of the time, temperature, and pressure
Easily portable due to its small size.
Additionally, for reliable printing, an easy-to-read digital time, temperature, and pressure display
unique magnetic help makes locking down simple and reduces wrist and shoulder fatigue
Individual time parameters can be pre-set for two-step applications using Twin Timer.
Pressure Adjustment ensures uniform, edge-to-edge heat and pressure, as well as space-saving clamshell design, under the center.
13.6 kg in actual weight
18.5 kg Shipping Weight
Size: 53.3 by 25.4 by 45.7 cm
Dimensions for Shipping: 66.4 x 38.1 x 53.3 cm

Hotronix Premier Warranty

  • Lifetime Warranty on Heating Element
  • 5 yr on Framework
  • 2 yr on Circuit board
  • 1 yr parts/labor

Additional Features

  • Patented Magnetic Auto Open Feature.
  • 3/4″ thick upper platen with non-stick coating.
  • Patented Magnetic Assist LockDown.
  • 3/8″ Silicone pad.
  • Quick-change 3.5″ x 6″ lower platen.
  • Platinum RTD heat sensor.
  • Cast-in tubular heating element every 2″ to eliminate cold spots.
  • Generates maximum pressure with less effort.
  • Under-center pressure adjustment.
  • UL/ULC/CE/ROHS approved.
  • Temp. range 205° – 420°F.
  • °F or °C available.
  • Electrical Options:
    120 v; 4 amps; 500 w
    240 v; 2 amps; 500 w
  • Must have designated circuit breaker
  • Space-saving clamshell design.
  • Actual Weight: 13.6 kg
  • Shipping Weight: 18.5 kg
  • Dimensions: 53.3 x 25.4 x 45.7 cm
  • Shipping Dimensions: 66.4 x 38.1 x 53.3 cm

Additional information

Weight 13.6 kg
Dimensions 53 × 25 × 45.7 cm
