Hot Foil Stamping Machines

0 out of 5

Hot Foil Stamping Machines are fit for stamping on the surface of Flat objects. Mainly applied to the field of craft, fabric bags, leather, paper, and plastic. With multifunction, easy to operate, fast speed, and low energy consumption.

  • The crank design has powerful stamping pressure and little consumption of air pressure.
  • Worktable is adjustable in the front-back, left-right direction,s and revolvable which ensures the quick and safe operation.
  • Stamping pressure, temperature, and time are adjustable.
  • Automatic foils feeding and rolling with adjustable function.
  • The height of the stamping head is adjustable.
Availability: 1 in stock SKU: TWG Category:
 Download high res image
 Download low res image
  Download all images As a zip
  Download printing instruction As a pdf
To access this section, first register and then log in
Print Proof

  Customize Quotation Sheet
To access this section, first register and then log in
To access this section, first Register and then log in
View cart

Description

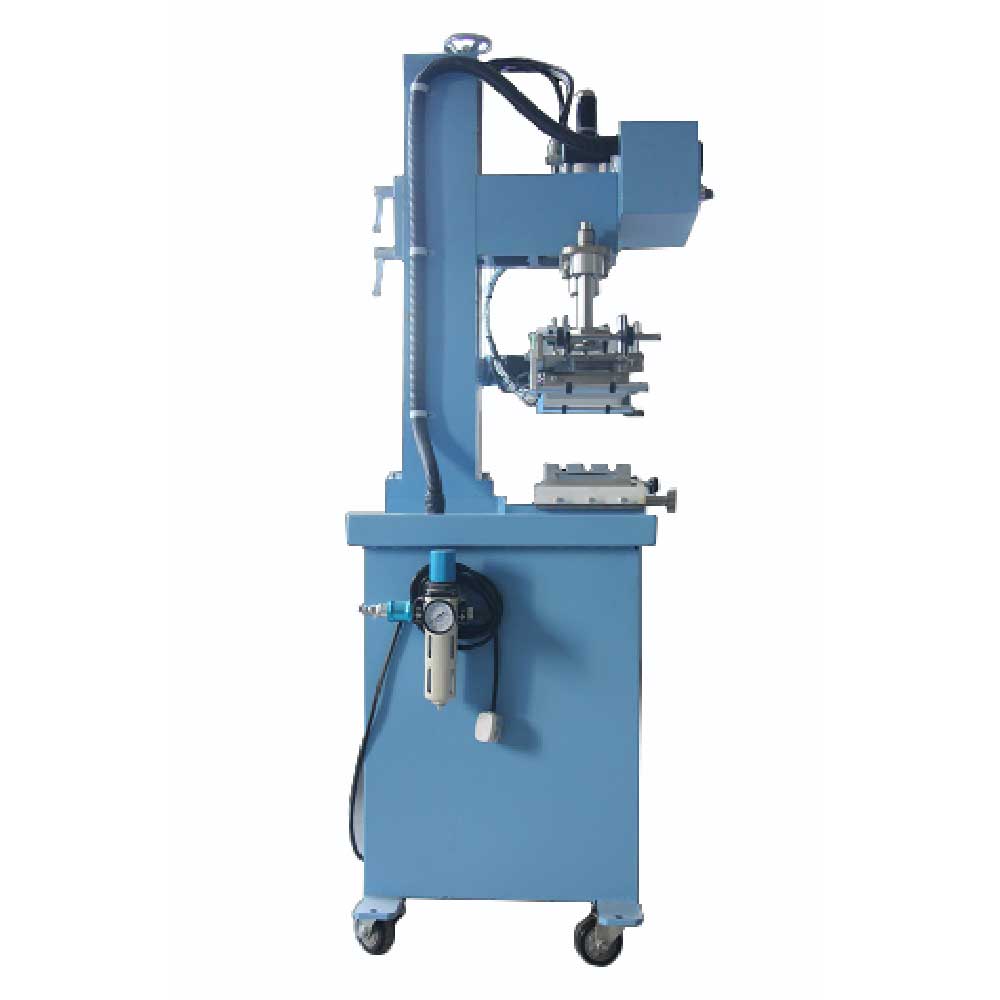

Pneumatic Plane Hot Foil Stamping Machines

Hot Foil Stamping Machines

1.This machine suits for hot process plane leather insole label, also it is suitable for  plastic crust , pvc bag, wood, furniture, electric products, paper, toys, etc.

2.Adjustable:Worktable;Stamping pressure, temperature and time; Height of the stamping head

3.Automatic foil feeding and rolling with adjustable function.

Pneumatic Plane Hot Foil Stamping Machines are fit for stamping on the surface of Flat objects. Mainly applied to the field of craft, fabric bags, leather, paper, and plastic. With multifunction, easy to operate, fast speed, and low energy consumption.

  • The crank design has powerful stamping pressure and little consumption of air pressure.
  • Worktable is adjustable in the front-back, left-right directions and resolvable which ensures the quick and safe operation.
  • Stamping pressure, temperature, and time are adjustable.
  • Automatic foils feeding and rolling with adjustable function.
  • The height of the stamping head is adjustable.

Application

Hot Foiling Sample

Parameter:

  1. The crank design has powerful stamping pressure and little consumption of air pressure.
  2. Worktable is adjustable in the front-back, left-right direction,s and revolvable which ensures the quick and safe operation.
  3. Stamping pressure, temperature, and time are adjustable.
  4. Automatic foils feeding and rolling with adjustable function.
  5. The height of the stamping head is adjustable.

Product detail

  1. Name – Pneumatic Plane hot stamping machine.
  2. Model NO.:TC-200
  3. Product shape: Plane
  4. Hot stamping size–200*150mm
  5. Power:220V/50Hz
  6. Electro thermal Power: 1500W
  7. Air Pressure:0.6-0.8 Mpa
  8. Operation: Pneumatic
  9. System control: automatic
  10. Stamping foil winding length – < 120 mm
  11. Stamping speed: 1300 PCS/H
  12. Machine Outline Dimensions: 700*620*1600 mm

Packing detail

  • Qty per carton: 1
  • Machine Weight: 210 KG
  • Gross Weight: 260 kg
  • Box size : 123 x 72  x 172 cm
  • Packing: Wooden Case
  • Standards Certificate CE.

Additional information

Weight 210 kg
Dimensions 123 × 72 × 172 cm
