Description

CAD-CUT® Hologram Heat Transfer Vinyl

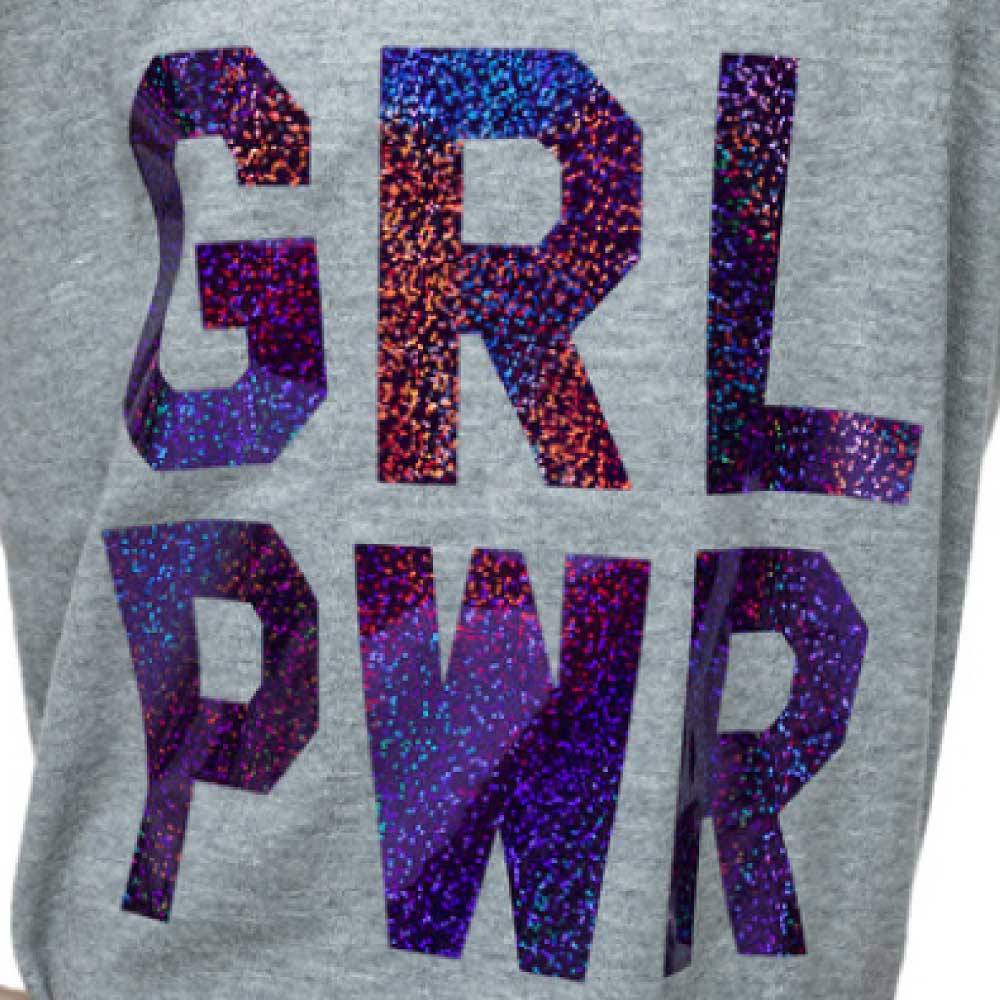

Hologram heat transfer vinyl provides a glittering, rainbow-effect finish resembling a prism. As the user moves, the image changes, producing a unique visual impact.

The finish has a prism-like high shine.
Applications with many layers are not advised.

to order this kind of product please click here!

Material Requirements

• Material: polyester
• Clear Pressure-Sensitive Carrier
• 100-115 microns thick (.1-.115 mm)
• Rebound & Stretch: 2
• 50 washability
• Safety: CPSIA Certified Compatible with Laser Cutter

1-Color Application Instructions

• Time: 10 – 15 seconds
• Temperature: 320°F/160°C
• Pressure: Firm
• Peel: Cold

Hotronix® 360 IQ™ Hat Press

• Time: 45 seconds
• Upper: 280°F
• Lower: 320°F
• Pressure: Medium
• Peel: Warm/Cold
• Cover Sheet: 1/8″ Foam Pad

Material/Fabric Compatibility

• 100% Cotton
• 100% Polyester
• 100% Preshrunk Cotton
• Cotton/Poly Blends

Care Instructions

Machine wash inside-out using mild detergent.
Do not use bleach. Dry at a normal dryer setting on household machines. Do not dry clean.

Storage

Store in a cool and dry area around 65 to 70 degrees Fahrenheit with 50% relative humidity. Keep away from direct heat, sunlight, and humidity. Recommended shelf life is one year.

Cutter Guidelines

Cutter                   Blade        Force                            Offset           Speed

GCC                       45°/60°     90-150g/90-130g      .25/.50           20 – 25 cm/s
Graphtec              45°             15-17                              0                   30cm/s
Roland GS-24     45°             140-160g                      .25                 30cm/s
